Retractable Hose Reels for Garden Watering and Workshop Air Supply
Yongkang Fengding Industry & Trade Co., Ltd. supplies retractable hose reels for garden watering and compressed-air applications. Our product range includes wall-mounted water hose reels and automatic retractable air hose reels, with different hose lengths and diameters for residential gardens, garages and workshop environments.
The FDAB air hose reel series offers four hose-length options from 10 m to 30 m, while the FDWB30 garden hose reel provides two configurations: 1/2-inch hose at 33 m or 5/8-inch hose at 18 m.
1. Water and Air Hose Reel Product Options
Garden Water Hose Reels
Our wall-mounted retractable garden hose reels are designed for outdoor watering and cleaning applications, including:
- Garden and lawn watering
- Greenhouse and courtyard maintenance
- Patio and driveway rinsing
- Vehicle washing
- Outdoor cleaning tasks
The FD-9-15 wall-mounted model features a 1/2-inch flexible PVC hose with a 15+1.5 m configuration, a weatherproof PP housing and an automatic spring rewind system.
Compressed Air Hose Reels
Our automatic retractable air hose reels are designed for compressed-air supply in garages, maintenance areas and workshops. The FDAB series uses a 3/8-inch PVC and rubber composite hose and provides four hose-length options to suit different working distances.
2. Retractable Hose Reel Specifications
FDAB 3/8 Inch Automatic Air Hose Reel Series
| Specification | FDAB10 | FDAB15 | FDAB20 | FDAB30 |
|---|---|---|---|---|
| Hose diameter | 3/8" | 3/8" | 3/8" | 3/8" |
| Hose length | 10 m | 15 m | 20 m | 30 m |
| Housing material | PP | PP | PP | PP |
| Hose material | PVC + rubber | PVC + rubber | PVC + rubber | PVC + rubber |
| Maximum pressure | 10 bar | 10 bar | 10 bar | 10 bar |
| Working temperature | -25°C to 45°C | -25°C to 45°C | -25°C to 45°C | -25°C to 45°C |
| Product dimensions | 360 × 210 × 320 mm | 360 × 210 × 320 mm | 425 × 220 × 375 mm | 460 × 250 × 400 mm |
| Net weight | 5.5 kg | 6.4 kg | 9.0 kg | 12.0 kg |
| Gross weight | 6.0 kg | 6.8 kg | 9.6 kg | 13.0 kg |
All four models use automatic retraction and wall-mounted installation. The 10 m and 15 m models share the same product dimensions, while the 20 m and 30 m versions use larger housings.

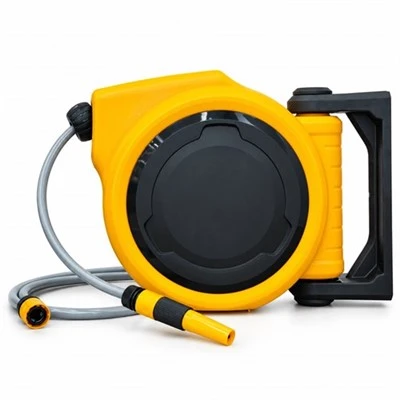

FDWB30 Retractable Garden Hose Reel
| Specification | 1/2-inch Version | 5/8-inch Version |
|---|---|---|
| Model | FDWB30 | FDWB30 |
| Hose diameter | 1/2" | 5/8" |
| Hose length | 33 m | 18 m |
| Product dimensions | 460 × 265 × 400 mm | 460 × 265 × 400 mm |
| Net weight | 12.0 kg | 10.0 kg |
| Gross weight | 13.0 kg | 11.0 kg |
| Packing | 1 pc/carton | 1 pc/carton |
| Customization MOQ | 500 pcs | 500 pcs |
The two FDWB30 configurations have different hose capacities and shipping weights. Select the required hose diameter and length before calculating the order quantity and freight.
FD-9-15 Wall-Mounted Water Hose Reel
| Specification | Value |
|---|---|
| Model | FD-9-15 |
| Housing material | Weatherproof PP |
| Hose material | Flexible PVC |
| Hose diameter | 1/2" |
| Hose length | 15+1.5 m |
| Working pressure | 8 bar |
| Burst pressure | 24 bar |
| Working temperature | -5°C to 45°C |
| Product dimensions | 375 × 208 × 305 mm |
| Carton dimensions | 400 × 230 × 330 mm |
| Net weight | 6.5 kg |
| Gross weight | 7.0 kg |
| Standard packing | 1 pc/carton |
3. Automatic Retraction and Wall-Mounted Installation
Our retractable hose reels use automatic winding mechanisms to return the hose into its housing after use.
The water hose reel models feature an internal spring mechanism and a hose-guiding structure for orderly retraction. The locking mechanism holds the hose at the required working length. A further pull releases the lock and activates automatic return.
Selected wall-mounted models feature a 180-degree swivel bracket. This allows the reel housing to turn with the direction of hose use.
For installation, the wall support and fixing arrangement should be matched to the selected model and mounting surface.
4. OEM and Product Customization
We provide OEM/ODM services for overseas distributors, wholesalers and private-label brands.
Our confirmed customization services include:
- Custom brand LOGO
- Packaging design
- Sample development and prototyping
- Product customization inquiries
For FDWB30, customization orders have a stated minimum order quantity of 500 units. Other models require individual confirmation of customization scope and order conditions.
5. Manufacturing and Quality Control
Yongkang Fengding Industry & Trade Co., Ltd. specializes in garden irrigation equipment and operates production and assembly facilities for its product range.
Our disclosed manufacturing equipment includes:
- Precision injection molding machines
- Automated assembly lines
- Automatic hose winding machines
- Hydraulic presses
- Automatic packaging machines
- UV printing equipment for custom branding
Our quality-control facilities include:
- High-pressure leak and burst testing machines
- Fatigue and durability testing machines
- Tensile strength testing machines
- Salt spray corrosion testing chambers
The production management process covers raw-material inspection, assembly and final packaging.
We also provide production progress updates, batch inspection services, technical support and logistics coordination for international customers.
6. Request a Retractable Hose Reel Quotation
If you are sourcing retractable hose reels for your distribution or private-label product range, contact us with your preferred model, hose diameter, hose length and estimated order quantity.
For customized orders, you can also provide your logo and packaging requirements.
Our team can review the selected configuration and provide the corresponding product and quotation information.
