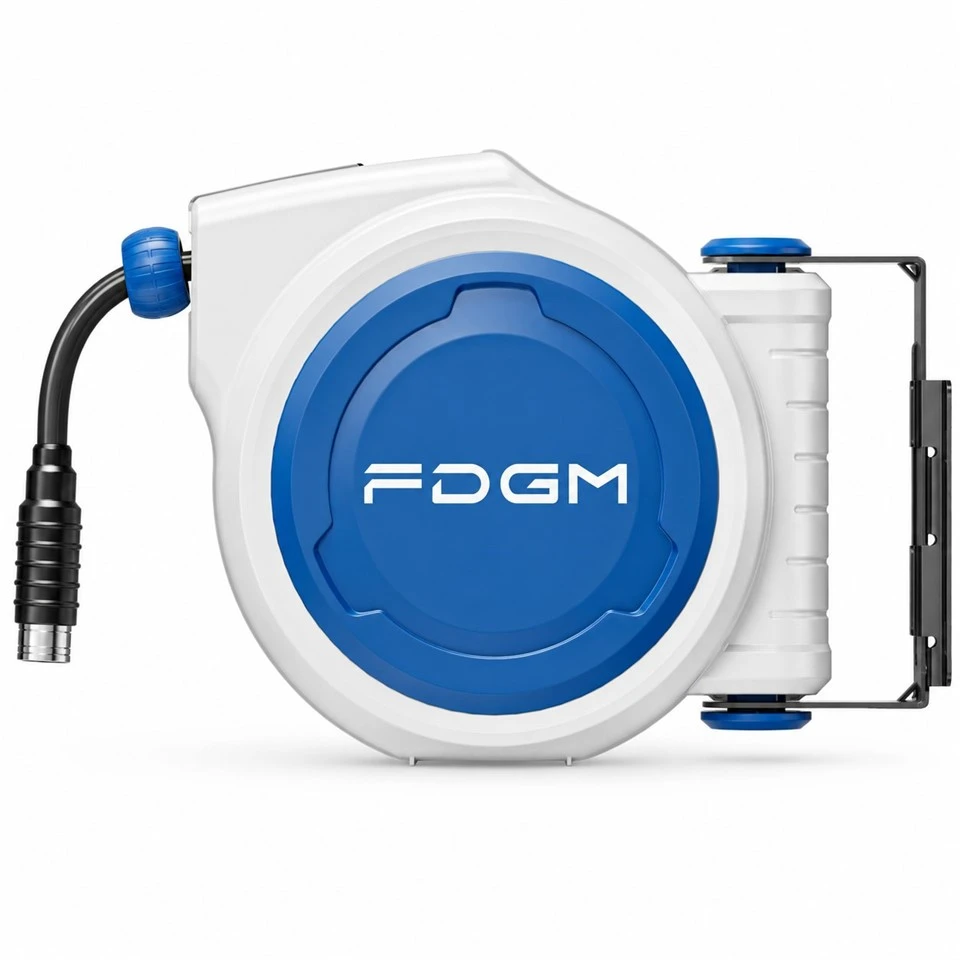

FDGM 10m Wall Mounted Retractable Air Hose Reel With 180 Degree Swivel
Description
Technical Parameters
Yongkang Fengding Industry & Trade Co., Ltd. is one of the leading manufacturers and suppliers of fdgm 10m wall mounted retractable air hose reel with 180 degree swivel in China. With abundant experience, we warmly welcome you to buy premium fdgm 10m wall mounted retractable air hose reel with 180 degree swivel made in China here from our factory. All customized products are with high quality and competitive price.
Start with the Air Supply, Not the Reel
Where is the fixed air connection, and where will the tool be used? Answer those two questions before installing this FDGM reel. Its inlet line is 1.5 m; its outlet line is 10 m. The shorter line serves the supply side, and the longer line defines the operator's working route. They should be measured separately rather than presented as one continuous 11.5 m working hose.
Mark Out the Swing
An iron bracket anchors the unit to a suitable wall. The body has a 180-degree turning range, so it can face a task on the left or right of its installed position. Leave room for this arc when choosing the location. The turning body changes the hose's direction, not its available working length.
Store the Line Between Jobs
After a job, the return mechanism draws the line back into the blue-and-white case automatically. The unit therefore stays at its assigned station while the tool-side hose is brought out only for the task at hand. This arrangement is useful near a bench, vehicle bay or routine maintenance position.
Check the Connection Before Purchase
Its PVC composite line has the dimensions listed in the parameter box. Pressure rating and connection-end types were not supplied. Ask for these details and the appropriate wall-fixing requirements before specifying the unit for a particular air setup.
Hot Tags: fdgm 10m wall mounted retractable air hose reel with 180 degree swivel, China fdgm 10m wall mounted retractable air hose reel with 180 degree swivel manufacturers, suppliers, factory, automatic air hose dispenser, covered hose reel, retractable pneumatic hose reel, self winding compressed air reel, wall mount air hose reel, wall mounted air hose reel
| Selection Point | This Version |
|---|---|
| Air supply-side line | 1.5 m inlet hose |
| Tool-side line | 10 m outlet hose |
| Hose construction | PVC composite |
| Marked hose size | 3/8 inch (9.5 x 15 mm) |
| Return function | Automatic retraction |
| Mounting component | Iron wall bracket |
| Body movement | 180-degree rotation |
| Appearance in supplied image | Blue and white; FDGM marking |
