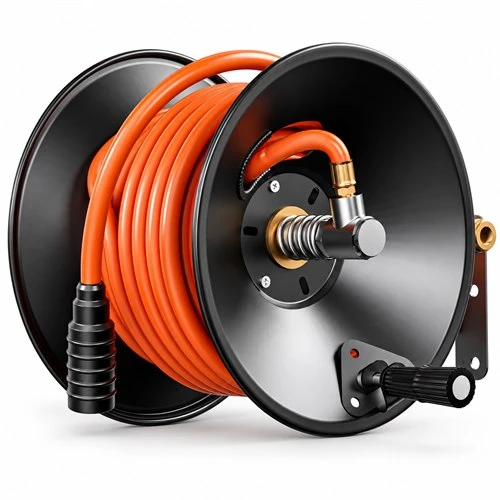

FDAH15/FDAH20 3/8 Inch Manual Air Hose Reel With Hand Crank
Description
Technical Parameters
Yongkang Fengding Industry & Trade Co., Ltd. is one of the leading manufacturers and suppliers of fdah15/fdah20 3/8 inch manual air hose reel with hand crank in China. With abundant experience, we warmly welcome you to buy premium fdah15/fdah20 3/8 inch manual air hose reel with hand crank made in China here from our factory. All customized products are with high quality and competitive price.
Manual Hose Control Without a Spring Return
The FDAH15 and FDAH20 are hand-crank air hose reels developed for workshops that prefer a straightforward mechanical winding method. The operator controls the rewinding speed with the side handle, making the reel suitable for fixed compressed-air points where powered or spring-driven retraction is not required.
Select 15 m or 20 m According to the Working Route
FDAH15 carries 15 m of 3/8-inch hose for routine tasks close to the compressor or air outlet. FDAH20 extends the available route to 20 m for larger bays or work areas. Before ordering, measure the path around vehicles, benches and equipment rather than relying only on a straight-line distance.
Open-Spool Layout for Visible Hose Management
The hose remains visible between the reel flanges, allowing the operator to observe how it is being wound onto the drum. A controlled winding pace helps distribute the hose across the reel and reduces uneven buildup. The frame provides a defined mounting base, while the crank handle keeps rewinding independent of electricity or an automatic return spring.
Built for Everyday Pneumatic Work
This manual compressed-air hose reel can support common tasks in garages, maintenance stations, assembly areas and general workshops. Typical uses include connecting inflators, blow guns and other compatible pneumatic tools within the confirmed operating limits of the complete air system.
Pressure Information Must Be Read Correctly
The supplied specification lists a burst pressure of 24 bar. Burst pressure is a product test or failure-limit reference and must not be treated as the permitted continuous working pressure. The actual working-pressure rating of the hose, fittings, swivel and connected equipment should be confirmed before installation and use.
Two Models, One Shipping Footprint
Both models are packed one piece per carton in a 300 x 280 x 340 mm box. FDAH15 has a net/gross weight of 5.0/6.5 kg, while FDAH20 is 5.7/7.2 kg. The listed loading reference is 980 pieces in a 20GP container or 2,311 pieces in a 40HQ container.
Information to Confirm with an Order
- FDAH15 or FDAH20 model selection
- Required inlet and outlet connection standards
- Permitted working pressure for the final hose and fitting configuration
- Mounting position and installation hardware
- Order quantity, destination and packaging requirements
Hot Tags: fdah15/fdah20 3/8 inch manual air hose reel with hand crank, China fdah15/fdah20 3/8 inch manual air hose reel with hand crank manufacturers, suppliers, factory, air hose reel enclosure, air tool hose reel, automatic air hose reel, covered hose reel, self winding compressed air reel, spring driven air hose reel
Common Specifications
| Item | Specification |
|---|---|
| Product type | Manual air hose reel |
| Rewinding method | Hand crank |
| Hose inside diameter | 3/8 inch |
| Burst pressure | 24 bar |
| Carton size | 300 x 280 x 340 mm |
| Packing quantity | 1 pc per carton |
| 20GP / 40HQ loading | 980 / 2,311 pcs |
Model Comparison
| Model | Hose Length | Hose I.D. | Net Weight | Gross Weight |
|---|---|---|---|---|
| FDAH15 | 15 m | 3/8 inch | 5.0 kg | 6.5 kg |
| FDAH20 | 20 m | 3/8 inch | 5.7 kg | 7.2 kg |
Safety note: The stated 24 bar value is burst pressure, not allowable continuous working pressure. Confirm the working-pressure rating and connection specification of the finished assembly before use.
