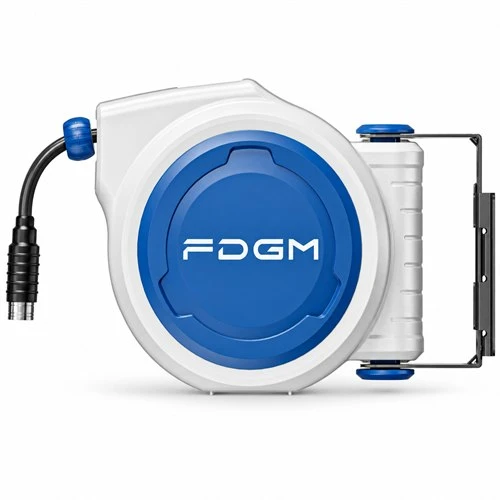

FDAB 3/8 Inch Wall Mounted Retractable Air Hose Reel Series
Description
Technical Parameters
Yongkang Fengding Industry & Trade Co., Ltd. is one of the leading manufacturers and suppliers of fdab 3/8 inch wall mounted retractable air hose reel series in China. With abundant experience, we warmly welcome you to buy premium fdab 3/8 inch wall mounted retractable air hose reel series made in China here from our factory. All customized products are with high quality and competitive price.
Select the Reel by Working Distance
The FDAB range places four hose lengths within one coordinated air-reel family. Instead of creating separate pages with nearly identical construction and operating data, this series page lets buyers compare the reach, housing footprint, packed weight and container quantity before selecting a model.
Four Models for Different Work Areas
- FDAB10: a compact 10 m option for routine work near a fixed air point.
- FDAB15: 15 m of hose for smaller workshops that need additional movement without a larger housing.
- FDAB20: a 20 m configuration intended for garages and general workshop coverage.
- FDAB30: the longest version, providing 30 m of reach for larger working areas.
Shared Construction Across the Series
Every listed model uses a 3/8-inch PVC + rubber composite air hose inside a PP enclosure. The wall-mounted arrangement keeps the reel at a defined service point, while the automatic return mechanism stores the hose after use. The bracket allows the housing to turn with the direction of work rather than forcing the hose to leave the reel at one fixed angle.
Hose Length Changes More Than Reach
Moving from FDAB10 to FDAB30 changes the housing dimensions, carton size and shipment weight as well as the usable hose length. Importers should quote and calculate freight against the exact model row. The 10 m and 15 m versions share one housing size, while the 20 m and 30 m reels use progressively larger enclosures.
Operating Reference
The complete range is rated at a maximum pressure of 10 bar and a stated temperature window of -25°C to 45°C (-13°F to 113°F). Confirm the air connection, inlet-hose arrangement and local fitting standard for the destination market before approving an order.
Information to Send with an Enquiry
- Required model and hose length
- Air-system pressure and connector standard
- Order quantity and destination country
- Requested color, logo and packaging details
- Any documentation required for the target market
Using the model number in every enquiry helps ensure that the correct dimensions, weight and container-loading data are applied to the quotation.
Hot Tags: fdab 3/8 inch wall mounted retractable air hose reel series, China fdab 3/8 inch wall mounted retractable air hose reel series manufacturers, suppliers, factory
Common Series Specifications
| Item | Specification |
|---|---|
| Series | FDAB |
| Product type | Wall-mounted automatic retractable air hose reel |
| Housing material | PP |
| Hose material | PVC + rubber composite hose |
| Hose diameter | 3/8 inch |
| Maximum pressure | 10 bar |
| Working temperature | -25°C to 45°C (-13°F to 113°F) |
| Mounting | Wall mounted |
| Retraction | Automatic |
| Packing quantity | 1 pc per carton |
Model Selection Table
| Model | Hose Length | Product Size | Carton Size | N.W. / G.W. | 20GP / 40HQ |
|---|---|---|---|---|---|
| FDAB10 | 10 m | 360 x 210 x 320 mm | 390 x 220 x 330 mm | 5.5 / 6.0 kg | 918 / 2,366 pcs |
| FDAB15 | 15 m | 360 x 210 x 320 mm | 390 x 220 x 330 mm | 6.4 / 6.8 kg | 918 / 2,366 pcs |
| FDAB20 | 20 m | 425 x 220 x 375 mm | 470 x 230 x 380 mm | 9.0 / 9.6 kg | 632 / 1,631 pcs |
| FDAB30 | 30 m | 460 x 250 x 400 mm | 495 x 265 x 410 mm | 12.0 / 13.0 kg | 483 / 1,245 pcs |
Selection note: Choose freight weight, carton dimensions and loading quantity from the same model row. Do not apply the FDAB10 or FDAB15 packing data to the longer FDAB20 and FDAB30 versions.
