Inside FDGM: Assembling the Automatic Hose Guide for Retractable Hose Reels

Inside an automatic retractable hose reel, the hose guide assembly performs a simple but important task: it helps control how the hose is positioned as it returns to the drum.

Although this assembly is mostly hidden after the housing is closed, its movement can affect how neatly the hose is stored inside the reel. At FDGM, the assembly process includes preparing the individual parts, building the guide unit and positioning it inside the reel before final assembly.

Preparing the Components

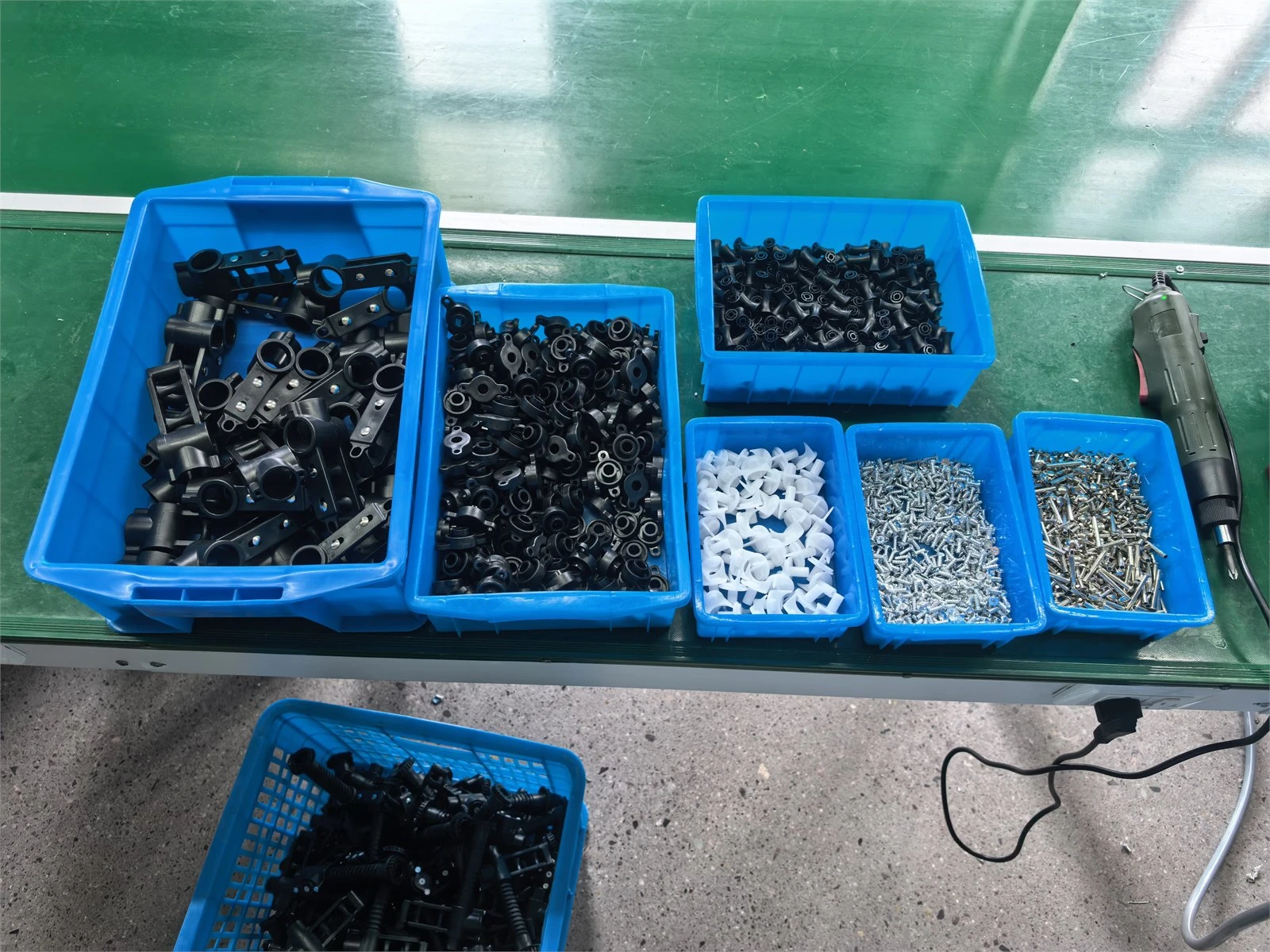

The process begins with preparing the spiral guide shafts, guide brackets, small fittings, clips and fasteners required for assembly.

The components are separated into different containers at the workstation. This makes them easier for the operator to identify and helps confirm that the required parts are available before assembly begins.

Organized component handling is particularly useful when several small parts must be fitted together in a specific sequence.

Building the Automatic Hose Guide Assembly

The spiral guide shaft and guide bracket are combined to form the main hose guide assembly.

As the hose reel drum rotates, the guide mechanism is designed to move across the winding area. This lateral movement helps direct the hose from side to side instead of allowing it to collect repeatedly in one position.

During assembly, the operator fits the relevant brackets, connecting pieces and fasteners around the guide shaft. The engagement between these parts is important because the guide needs to move along its intended path without becoming obstructed.

The completed unit can then be prepared for installation inside the hose reel housing.

Installing the Assembly Inside the Reel

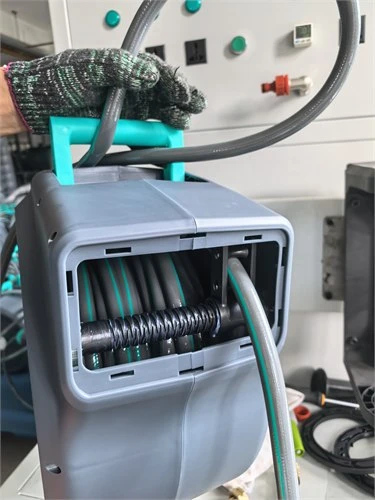

The assembled hose guide is positioned across the front of the reel drum. The hose passes through the guide area before being routed toward the outlet of the housing.

This installation stage provides an opportunity to check the hose path, the position of the guide and the available clearance around the drum and housing.

After the parts are correctly positioned, the operator can move the hose and observe whether the guide follows the winding area as intended. This practical check helps identify incorrect positioning or restricted movement before the housing is fully closed.

Why Hose Organization Matters

Buyers often compare retractable hose reels by hose length, diameter, working pressure and retraction options. However, internal hose organization also contributes to the user experience.

A properly assembled hose guide can help reduce uneven accumulation and unnecessary crossing of the hose inside the housing. It works together with the drum, spring mechanism, locking system and hose itself to support consistent storage during normal use.

The hose guide alone does not determine the complete performance of a retractable reel. Its installation must be considered together with the alignment and operation of the other internal components.

Building the Product Step by Step

FDGM invested in dedicated product molds in 2026 and is continuing to develop its range of retractable garden hose reels, air hose reels and cable reels. Our product development team brings approximately 20 years of experience in the reel industry.

By documenting individual production and assembly processes, we aim to give importers, distributors, hardware retailers and private-label buyers a clearer view of how our products are made.

For information about available reel models, hose specifications, automatic rewind options, branding or retail packaging, please contact FDGM to discuss your project requirements.
